Chipset: AMD X670

Rozměrový formát: ATX Form Factor (30.5 cm x 24.4 cm)
Podpora pro procesory: AMD Ryzen 7000 Series Desktop Processors
Patice procesoru: AM5

Pozice na paměti: 4 x DIMM,. Dual Channel Memory Architecture
Podpora pro paměti: DDR5 6400+(OC)/ 6200(OC)/ 6000(OC)/ 5800(OC)/ 5600(OC)/ 5400(OC)/ 5200/ 5000/ 4800 MHz
Max.velikost operační paměti: 128 GB
Podpora pro paměti typu: ECC, Non-ECC

Grafické výstupy: (na základě procesoru)
*1 x DisplayPort 1.4
*1 x HDMI port 2.1

Zvuková karta: Realtek S1220A 7.1 Surround Sound High Definition Audio CODEC

Síťová karta:
*1 x Realtek 2.5Gb Ethernet
*Wi-Fi 6E (802.11 a/b/g/n/ac/ax)
*Bluetooth v5.2

Rozšiřující sloty:
*1 x PCIe 5.0 x16 slot
*1 x PCIe 4.0 x16 slot (supports x4 mode)
*1 x PCIe 4.0 x4 slots

RAID řadič: RAID 0/1/10

SATA: 4 x SATA 6Gb/s ports

M.2: 4 x M.2 slots

USB:
*Interní:
*1 x USB 3.2 Gen 2 connector (supports USB Type-C)
*1 x USB 3.2 Gen 1 header supports additional 2 USB 3.2 Gen 1 ports
*3 x USB 2.0 headers support additional 6 USB 2.0 ports
*Externí:
*1 x USB 3.2 Gen 2x2 port (1 x USB Type-C)
*4 x USB 3.2 Gen 2 ports (3 x Type-A, 1 x USB Type-C)
*5 x USB 3.2 Gen 1 ports (5 x Type-A)

Interní porty:
*Fan and Cooling related
*1 x 4-pin CPU Fan header
*1 x 4-pin CPU OPT Fan header
*1 x 4-pin AIO Pump header
*4 x 4-pin Chassis Fan headers
*1 x W_PUMP+ header
*Power related
*1 x 24-pin Main Power connector
*2 x 8-pin +12V Power connectors
*Storage related
*4 x M.2 slots (Key M)
*4 x SATA 6Gb/s ports
*USB
*1 x USB 3.2 Gen 2 connector (supports USB Type-C)
*1 x USB 3.2 Gen 1 header supports additional 2 USB 3.2 Gen 1 ports
*3 x USB 2.0 headers support additional 6 USB 2.0 ports
*Miscellaneous
*3 x Addressable Gen 2 headers
*1 x AURA RGB header
*1 x Clear CMOS header
*1 x COM Port header
*1 x Front Panel Audio header (AAFP)
*1 x 20-3 pin System Panel header with Chassis intrude function
*1 x Thermal Sensor header
*1 x Thunderbolt header

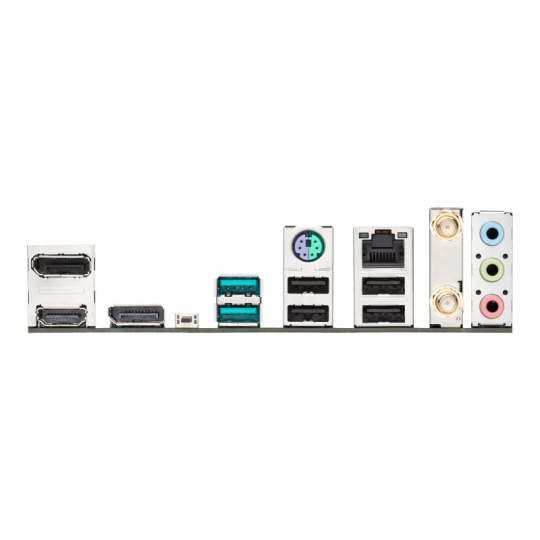

Externí porty:
*1 x USB 3.2 Gen 2x2 port (1 x USB Type-C)
*4 x USB 3.2 Gen 2 ports (3 x Type-A, 1 x USB Type-C)
*5 x USB 3.2 Gen 1 ports (5 x Type-A)
*1 x DisplayPort
*1 x HDMI port
*1 x Wi-Fi Module
*1 x Realtek 2.5Gb Ethernet port
*5 x Audio jacks
*1 x BIOS FlashBack button

BIOS: UEFI AMI BIOS, 256 Mb Flash ROM
