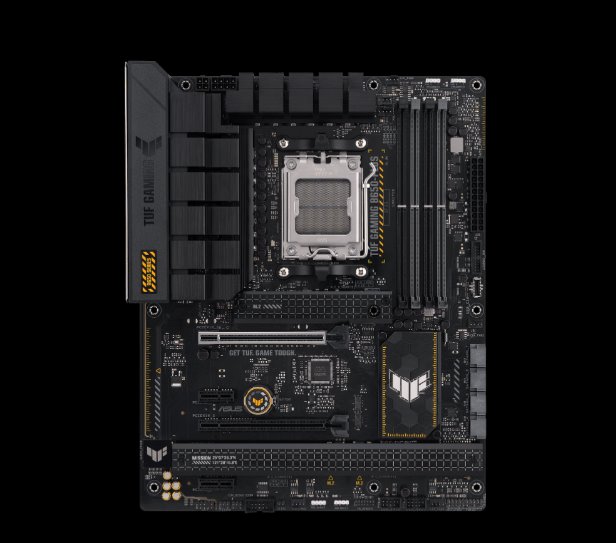

ASUS TUF GAMING B650-PLUS takes all the essential elements of the latest AMD Ryzen 7000-series processors and combines them with game-ready features and proven durability. Engineered with military-grade components, an upgraded power solution and a comprehensive cooling system, this motherboard goes beyond expectations with rock-solid and stable performance for marathon gaming. TUF GAMING motherboards also undergo rigorous endurance testing to ensure that they can handle conditions where others may fail. Aesthetically, this model incorporates rugged off-black and geometric design elements to reflect the dependability and stability that defines the TUF GAMING series.

CPU
AMD Socket AM5 for AMD Ryzen™ 7000 Series
Desktop Processors*
* Refer to www.asus.com for CPU support list.
Chipset
AMD B650
Memory
4 x DIMM, Max. 128GB, DDR5
6400+(OC)/ 6200(OC)/ 6000(OC)/ 5800(OC)/ 5600(OC)/ 5400(OC)/ 5200/ 5000/ 4800 ECC & Non-ECC, Un-buffered Memory*
Dual Channel Memory Architecture
Supports AMD EXTended Profiles for Overclocking (EXPO™)
OptiMem II
* Supported memory types, data rate(Speed), and number of DRAM modules vary depending on the CPU and memory configuration, for more information refer to www.asus.com for memory support list.
** Non-ECC, Un-buffered DDR5 Memory supports On-Die ECC function
Graphics
1 x DisplayPort*
1 x HDMI® port**
* Supports max. 8K@60Hz as specified in DisplayPort 1.4.
** Supports 4K@60Hz as specified in HDMI 2.1.
*** VGA resolution support depends on processors' or graphic cards' resolution.
Expansion Slots
AMD Ryzen™ 7000 Series Desktop Processors*
1 x PCIe 4.0/3.0 x16 slot(s)
AMD B650 Chipset
1 x PCIe 4.0/3.0 x16 slot (supports x4 mode)
2 x PCIe 4.0/3.0 x1 slots
* Please check PCIe bifurcation table on support site (https://www.asus.com/support/FAQ/1037507/).
Storage
Total supports 3 x M.2 slots and 4 x SATA 6Gb/s ports
AMD Ryzen™ 7000 Series Desktop Processors
M.2_1 slot (Key M), type
2242/2260/2280(supports PCIe 5.0 x4 mode)
M.2_2 slot (Key M), type 2242/2260/2280/22110 (supports PCIe 4.0 x4 mode)
AMD B650 Chipset
M.2_3 slot (Key M), type 2242/2260/2280 (supports PCIe 4.0 x4 mode)**
4 x SATA 6Gb/s ports
* AMD RAIDXpert2 Technology supports both PCIe RAID 0/1/10 and SATA RAID 0/1/10.
** M.2_3 shares bandwidth with PCIEX16_2. PCIEX16_2 will be suspended once M.2_3 is populated.
Ethernet
1 x Realtek 2.5Gb Ethernet
TUF LANGuard
USB
Rear USB (Total 8 ports)
1 x USB 3.2 Gen 2x2 port(s) (1 x USB Type-C®)
3 x USB 3.2 Gen 2 port(s) (2 x Type-A + 1 x USB Type-C®)
4 x USB 2.0 port(s) (4 x Type-A)
Front USB (Total 7 ports)
1 x USB 3.2Gen 1 connector (supports USB Type-C®)
1 x USB 3.2 Gen 1 header(s) support(s) additional 2 USB 3.2 Gen 1 ports
2 x USB 2.0 header(s) support(s) additional 4 USB 2.0 ports
Audio
Realtek 7.1 Surround Sound High Definition Audio CODEC*
- Supports: Jack-detection, Multi-streaming, Front Panel Jack-retasking
- Supports up to 24-Bit/192 kHz playback
Audio Features
- Audio Shielding
- Power pre-regulator reduces power input noise to ensure consistent performance
- Premium audio capacitors
- Dedicated audio PCB layers
- Audio cover
- Unique de-pop circuit
* Due to limitations in HDA bandwidth, 32-Bit/192 kHz is not supported for 7.1 Surround Sound audio.
** A chassis with an HD audio module in the front panel is required to support 7.1 Surround Sound audio output.
Back Panel I/O Ports
1 x USB 3.2 Gen 2x2 port(s) (1 x USB Type-C®)
3 x USB 3.2 Gen 2 port(s) (2 x Type-A + 1 x USB Type-C®)
4 x USB 2.0 port(s) (4 x Type-A)
1 x DisplayPort
1 x HDMI® port
1 x Realtek 2.5Gb Ethernet port
5 x Audio jacks
1 x BIOS FlashBack™ button
Internal I/O Connectors
Fan and Cooling related
1 x 4-pin CPU Fan header(s)
1 x 4-pin CPU OPT Fan header(s)
1 x 4-pin AIO Pump header(s)
4 x 4-pin Chassis Fan header(s)
Power related
1 x 24-pin Main Power connector
1 x 8-pin +12V Power connector
1 x 4-pin +12V Power connector
Storage related
3 x M.2 slots (Key M)
4 x SATA 6Gb/s ports
USB
1 x USB 3.2 Gen 1 connector (support(s) USB Type-C® )
1 x USB 3.2 Gen 1 header(s) support(s) 2 additional USB 3.2 Gen 1 ports
2 x USB 2.0 header(s) support(s) 4 additional USB 2.0 ports
Miscellaneous
3 x Addressable Gen 2 header(s)
1 x Aura RGB header(s)
1 x Clear CMOS header
1 x COM Port header
1 x Front Panel Audio header (AAFP)
20-3 pin System Panel header with Chassis intrude function
1 x Thunderbolt™ (USB4®) header
Special Features
ASUS TUF PROTECTION
- DIGI+ VRM (- Digital power design with DrMOS)
- Enhanced DRAM Overcurrent Protection
- ESD Guards
- TUF LANGuard
- Overvoltage Protection
- SafeSlot Core+
- Stainless-Steel Back I/O
ASUS Q-Design
- M.2 Q-Latch
- Q-DIMM
- Q-LED (CPU [red], DRAM [yellow], VGA [white], Boot Device [yellow green])
- Q-Slot
ASUS Thermal Solution
- M.2 heatsink
- VRM heatsink design
ASUS EZ DIY
- BIOS FlashBack™ button
- BIOS FlashBack™ LED
- ProCool
- Pre-mounted I/O shield
- SafeDIMM
Aura Sync
- Aura RGB header(s)
- Addressable Gen 2 header(s)
Software Features
ASUS Exclusive Software
Armoury Crate
- Aura Creator
- Aura Sync
- Fan Xpert 4
- Power Saving
- Two-Way AI Noise Cancellation
AI Suite 3
- TurboV EVO
- DIGI+ VRM
- PC Cleaner
TUF GAMING CPU-Z
DTS Audio Processing
Norton Anti-virus software (Free Trial version)
WinRAR
UEFI BIOS
ASUS EZ DIY
- ASUS CrashFree BIOS 3
- ASUS EZ Flash 3
- ASUS UEFI BIOS EZ Mode
BIOS
256 Mb Flash ROM, UEFI AMI BIOS
Operating System
Windows® 11
Windows® 10 64-bit
Form Factor
ATX Form Factor
12 inch x 9.6 inch ( 30.5 cm x 24.4 cm )
