Standard WiFi 6 nové generace – Standard WiFi 802.11ax s vyšší účinností a propustností.
Ultra rychlá WiFi – 12-streamová rychlost WiFi 6000 Mb/s, která si snadno poradí i s nejvytíženější sítí.
Dva 10G porty – Využijte až 10krát vyšší rychlost přenosu dat u úloh náročných na šířku pásma díky portům síťových technologií 10GBase-T a 10G SFP+.
Širší využití a větší pohodlí – 8 antén + 8 LAN portů pro podporu více připojených klientů najednou.
Zabezpečení na komerční úrovni – AiProtection Pro od společnosti Trend Micro™ blokuje internetové bezpečnostní hrozby na všech připojených chytrých zařízeních.
Lepší spolupráce s Mesh systémem – Kompatibilní se systémem ASUS AiMesh WiFi pro bezproblémové pokrytí celé domácnosti.

Model Name

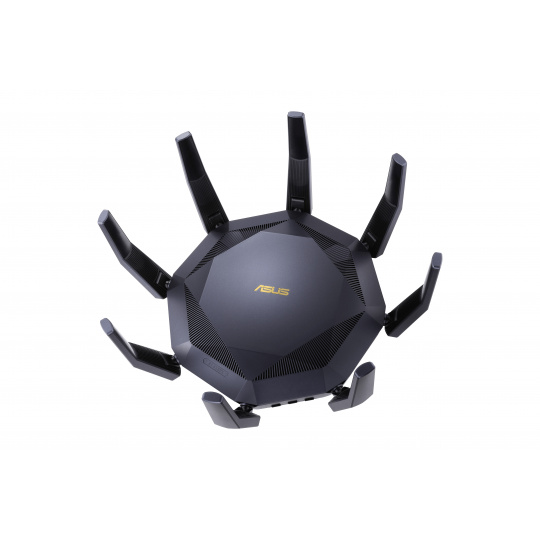

RT-AX89X


Network Standard

IEEE 802.11a
IEEE 802.11b
IEEE 802.11g
IEEE 802.11n
IEEE 802.11ac
IEEE 802.11ax
IPv4
IPv6


Product Segment

AX6000 ultimate AX performance: 1148+4804 Mbps


AX technology

Yes


Data Rate

802.11a : up to 54 Mbps
802.11b : up to 11 Mbps
802.11g : up to 54 Mbps
802.11n : up to 600 Mbps
802.11ac : up to 1000 Mbps
802.11ac : up to 4333 Mbps
802.11ax (2.4GHz) : up to 1148 Mbps
802.11ax (5GHz) : up to 4804 Mbps


Antenna

External antenna x 8


Transmit/Receive

2.4 GHz 4 x 4
5 GHz 8 x 8


Processor

2.2GHz quad-core processor


Memory

256 MB Flash, 1 GB RAM


Boosts speed

OFDMA (Orthogonal Frequency Division Multiple Access),
Beamforming: standard-based and universal,
1024-QAM high data rate,
20/40/80 MHz bandwidth,


Operating Frequency

2.4 GHz / 5 GHz


Ports

RJ45 for 10Gbps BaseT for WAN/LAN x 1, RJ45 for 1Gbps BaseT for LAN x 8, RJ45 for 1Gbps BaseT for WAN x 1
USB 3.1 Gen 1 x 2
SFP+ x 1


Button

WPS Button, Reset Button, Power Button, Wireless on/off Button, LED on/off Button


LED Indicator

Power x 1
Wi-Fi x 3
WAN x 1
LAN x 1
10GE x 1
SFP+ x 1


Power Supply

AC Input : 110V~240V(50~60Hz)
DC Output : 19V 3.42A


Package content

RJ45 x1
Adapter x1
QSG x1
Warranty Card x1
RT-AX89X x1


Product Weight (g)

1280 g


AiMesh

AiMesh:Yes
Primary AiMesh router:Yes
AiMesh node:Yes


Router APP

ASUS Router APP:Yes


Game

Game Boost/acceleration:Yes
WTFast:No


Alexa

Support Alexa skill:Yes


IFTTT

Support IFTTT:Yes


AiProtection

AiProtection:AiProtection Pro
Router Security Assessment:Yes
Malicious site blocking:Yes
Two-Way IPS:Yes
Infected Device Prevention and Blocking;Yes


Parental Control

Parental Control:Yes
Parental Control Customized Internet schedule:Yes


Traffic Control

Adaptive QoS:Yes
Bandwidth Monitor:Yes
Bandwidth limiter:Yes
Maximum Bandwidth limiter rule:32
Traditional QoS:Yes
Maximum Traditional QoS rule:32
Traffic Monitor:Yes
Real-time traffic monitor:Yes
Wired Traffic Monitor:Yes
Wireless Traffic Monitor:Yes
Traffic Analyzer:Yes
Traffic analysis period:Daily, Weekly, Monthly
Website history:Yes


Wireless

IPv6:Yes
MU-MIMO:Yes
Wi-Fi Encryption:WPA2-PSK, WPA-PSK, WPA-Enterprise , WPA2-Enterprise , WPS support
UTF-8 SSID:Yes
Guest Network:Yes
Maximum Guest Network rule:2.4GHz x2, 5GHz-1 x2,5GHz-2 x4
Guest Network Encryption:Open system, WPA/WPA2-Personal
WPS:Yes
Wi-Fi MAC address filter:Yes
Maximum MAC filters:64
Wireless scheduler:Yes
Airtime fairness:Yes
RADIUS Server:Yes
Universal beamforming:Yes
Explicit beamforming:Yes


WAN

Internet connection Type:PPPoE, PPTP, L2TP, Automatic IP, Static IP
Dual WAN:Yes
WAN Aggregation:Yes
3G/4G LTE dongle:Yes
Android tethering:Yes
Port forwarding:Yes
Maximum port forwarding rule:64
Port triggering:Yes
Maximum port triggering rule:32
DMZ:Yes
DDNS:Yes
NAT Passthrough:PPTP, L2TP, IPSec, RTSP, H.323, SIP Passthrough,PPPoE relay
Let's Encrypt:Yes


LAN

DHCP Server:Yes
IGMP snooping:Yes
IPTV:Yes
LAN Link Aggregation:Yes
Manually assign IP address:Yes
Maximum manually assign IP address rule:64


VPN

VPN Client L2PT:Yes
VPN Client OVPN:Yes
VPN Client PPTP:Yes
VPN Server IPSec:Yes
VPN Server OVPN:Yes
VPN Server PPTP:Yes
VPN Fusion:No


USB application

File System:FS_Tuxera_HFS+,FS_Tuxera_NTFS,FS_Tuxera_vFAT,FS_ext2,FS_ext3,FS_ext4
3G/4G LTE dongle:Yes
HDD hibernation:Yes
Safely Remove disk:Yes
AiCloud:Yes
Download master:Yes
AiDisk:Yes
Media Server:Yes
Time Machine:Yes
Samba Server:Yes
FTP Server:Yes
Shared Folder privileges:Yes


Administration

Operating mode:Accesspoint, AiMeshnode, Mediabridge, Repeater, Router
Operating system:ASUSWRT
Free OS upgrade:Yes
Firewall:Yes
Maximum Firewall keyword filter:64
Maximum Firewall network service filter:32
Maximum Firewall URL filter:64
Wake on LAN (WOL):Yes
SSH:Yes
Configuration backup and restore:Yes
Diagnosis tools:Yes
Feedback system:Yes
System log:Yes
