Marketing Name

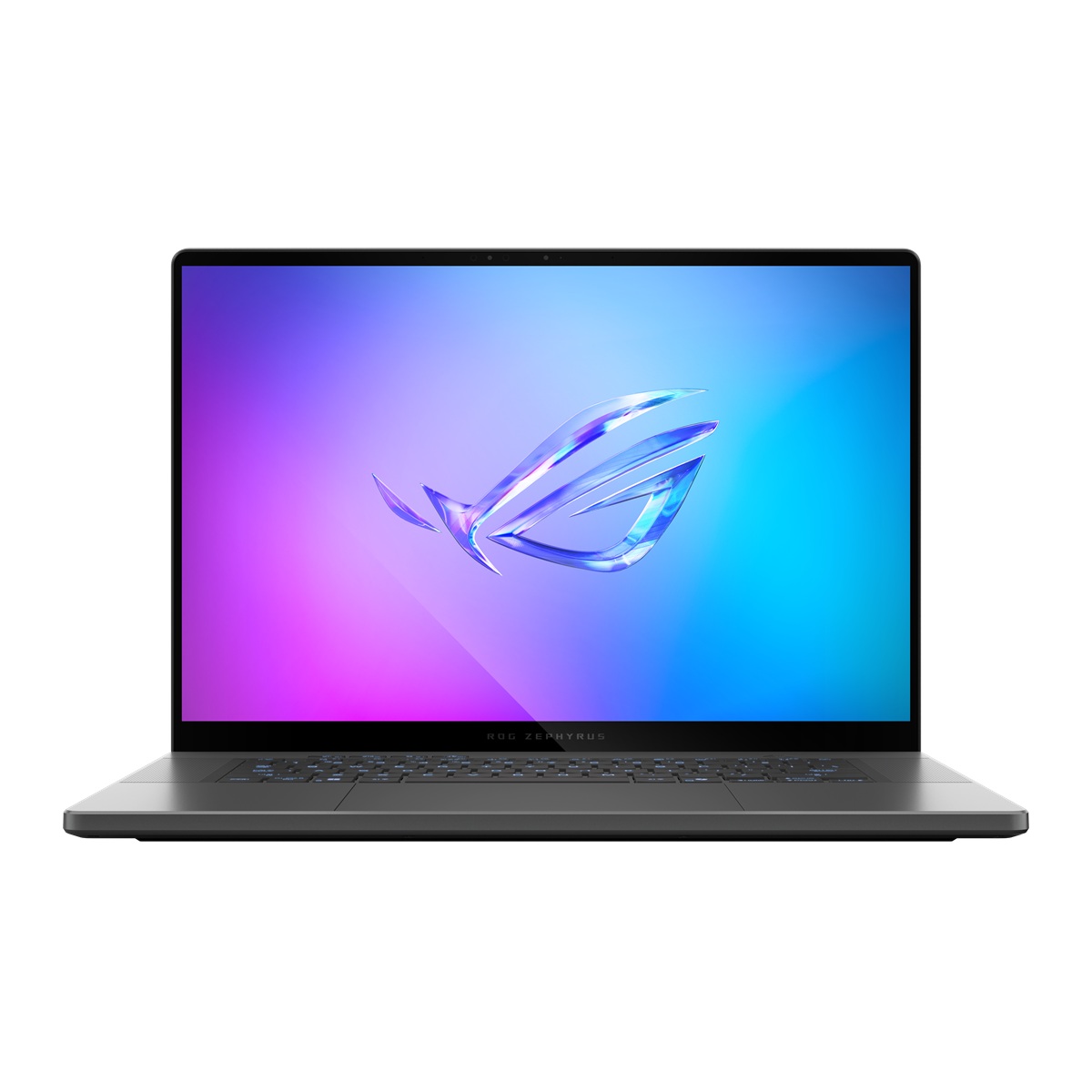

ROG Zephyrus G16

Operating System
Windows 11 Pro

Office
1-month trial for new Microsoft 365 customers. Credit card required.

Color
Eclipse Gray

Dimension (W x D x H)
35.4 x 24.6 x 1.49 ~ 1.74 cm (13.94" x 9.69" x 0.59" ~ 0.69")

Weight
1.95 Kg (4.30 lbs)

Processor
Intel® Core™ Ultra 9 Processor 285H 2.9 GHz (24MB Cache, up to 5.4 GHz, 16 cores, 16 Threads); Intel® AI Boost NPU up to 13TOPS

Chipset
N/A

Intergrated GPU
Intel® Arc™ Graphics

Discrete/Optimus
MUX Switch + NVIDIA® Advanced Optimus

Graphic
NVIDIA® GeForce RTX™ 5070 Ti Laptop GPU

Graphic Wattage
ROG Boost: 1497MHz* at 115W (1447MHz Boost Clock+50MHz OC, 95W+20W Dynamic Boost)

Graphic Memory
12GB GDDR7

Neural Processor
Intel® AI Boost NPU up to 13TOPS

Panel Size
16-inch

Resolution
2.5K (2560 x 1600, WQXGA) OLED 16:10 aspect ratio

Refresh Rate
240Hz

Viewing Angle
89/89/89/89

Panel Tech
OLED

Brightness
500 nits (Peak)

Contrast Ratio
1,000,000:1

DCI-P3 %
100%

Glare
Glossy display

Adaptive-Sync technology
G-Sync

Pantone
Pantone Validated

Nebula Display
ROG Nebula Display

Support Dolby Vision HDR
Yes

On board memory
32GB LPDDR5X 7467 on board(Actual memory speeds may vary by CPU configuration.)

Total System Memory
LPDDR5X 32GB

Memory Slot
N/A

Memory Max.
64GB

Multi-channel memory technology
Support dual channel memory

Storage
2TB PCIe® 4.0 NVMe™ M.2 SSD

M.2 slots support either SATA or NVMe
2

M.2 SSD Support List
1TB M.2 NVMe™ PCIe® G4x4 Performance SSD (ACC/TW only)
2TB M.2 NVMe™ PCIe® G4x4 Performance SSD (ACC/TW only)
1TB M.2 NVMe™ PCIe® G4x4 Value SSD
2TB M.2 NVMe™ PCIe® G4x4 Value SSD

Expansion Slot (includes used)
2x M.2 PCIe

LAN
N/A

Wireless
Wi-Fi 7(802.11be) (Triple band) 2*2 + Bluetooth® 5.4 Wireless Card (*Bluetooth® version may change with OS version different.)

I/O Ports
1x Thunderbolt™ 4 with support for DisplayPort™ / power delivery (data speed up to 40Gbps)
1x USB 3.2 Gen 2 Type-C with support for DisplayPort™ / power delivery / G-SYNC (data speed up to 10Gbps)
2x USB 3.2 Gen 2 Type-A (data speed up to 10Gbps)
1x card reader (SD) (UHS-II, 312MB/s)

Display output
1x HDMI 2.1 FRL

Camera
1080P FHD IR Camera for Windows Hello

Mic
Built-in 3-microphone array

Keyboard Type
Backlit Chiclet Keyboard 1-Zone RGB

Aura Sync
Yes

Touchpad
Touchpad
N/A

Speakers
4-speaker (dual-force woofer) system with Smart Amplifier Technology, 2 Tweeters

Audio
1x 3.5mm Combo Audio Jack
Built-in 3-microphone array

Audio Tech
AI noise-canceling technology
Dolby Atmos
Hi-Res certification (for headphone)
Smart Amp Technology

Security
BIOS Administrator
Password and User Password Protection
Trusted Platform Module (Firmware TPM)

Antivirus
McAfee® 30 days free trial

Battery
90WHrs, 4S1P, 4-cell Li-ion

Fast charging
Recharge from 0-50% in 30 minutes

Power
Rectangle Conn, 240W AC Adapter, Output: 20V DC, 12A, 240W, Input: 100~240C AC 50/60Hz universal

Required charging power
Min: 45W
Max: 100W

Xbox Game Pass
Xbox Game Pass for PC_3 months (*Terms and exclusions apply. Offer only available in eligible markets for Xbox Game Pass for PC. Eligible markets are determined at activation. Game catalog varies by region, device, and time.)

Ecolabels & Compliances
N/A
