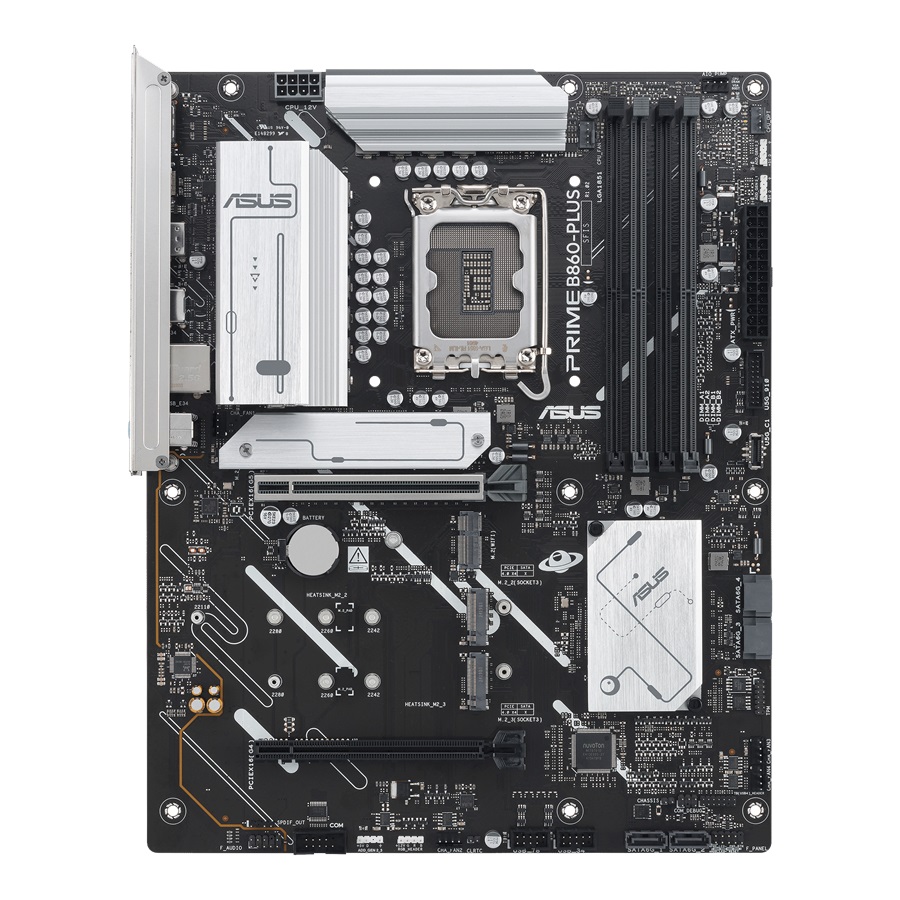

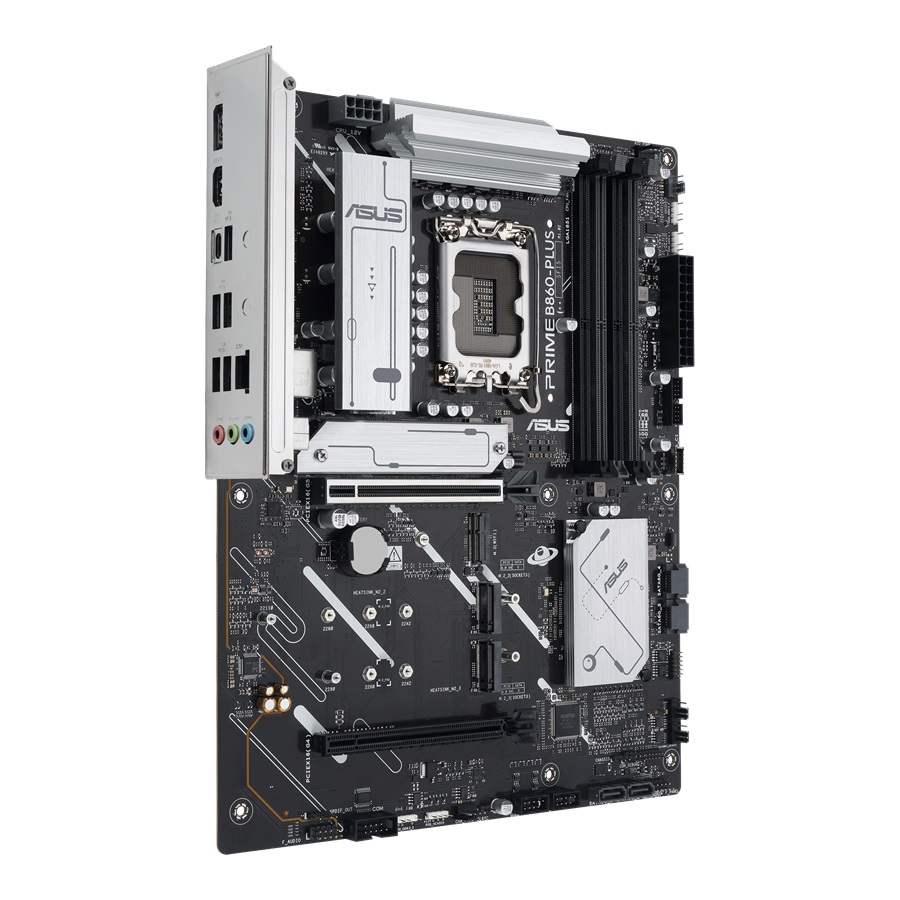

ASUS PRIME B860-PLUS

* ATX Form Factor

CPU: Support Intel® Core™ Ultra Processors (Series 2) - LGA1851, Supports Intel® Turbo Boost Technology 2.0 and Intel® Turbo Boost Max Technology 3.0

Chipset: Intel® B860 Chipset

Paměť: 4 x sloty DIMM, max. 192 GB, DDR5 - Podpora až 8200+MT/s (OC), Non-ECC, Un-buffered ,Clocked Unbuffered DIMM (CUDIMM)
*Dvoukanálová paměťová architektura
*DIMM Fit
*Podporuje paměťový modul Intel® Extreme Memory Profile (XMP)
*ASUS Enhanced Memory Profile III (AEMP III)

Grafické porty:
*1 x DisplayPort
*1 x HDMI™ port

Rozšiřující sloty:
Intel® Core™ Ultra Processors (Series 2)
*1 x PCIe 5.0 x16 slot
Intel® B860 Chipset
*1 x PCIe 4.0 x16 slot (supports x4 mode)

Úložný prostor:
Total supports 3 x M.2 slots and 4 x SATA 6Gb/s ports
Intel® Core™ Ultra Processors (Series 2)
*M.2_1 slot (Key M), type 2242/2260/2280 (supports PCIe 5.0 x4 mode)
Intel® B860 Chipset
*M.2_2 slot (Key M), type 2242/2260/2280/22110 (supports PCIe 4.0 x4 mode)
*M.2_3 slot (Key M), type 2242/2260/2280 (supports PCIe 4.0 x4 mode)
*4 x SATA 6Gb/s ports

Ethernet:
*1 x Realtek 2.5Gb Ethernet
*ASUS LANGuard

Připojení a Bluetooth:
*Pouze slot M.2 (Key E, CNVi a PCIe) - Modul Wi-Fi se prodává samostatně

USB:
Zadní USB (Total 7 ports)
*1 x USB 20Gbps port (1 x USB Type-C®)
*2 x USB 10Gbps ports (2 x Type-A)
*1 x USB 5Gbps port (1 x Type-A)
*2x USB 2.0 ports (2 x Type-A)
Přední USB (Total 7 ports)
*1 x USB 5Gbps port (1 x USB Type-C®)
*1 x USB 5Gbps header supports additional 2 USB 5Gbps ports
*2 x USB 2.0 headers support 4 additional USB 2.0 ports
Audio:
Realtek 7.1 Surround Sound High Definition Audio CODEC
*Supports: Jack-detection, Multi-streaming, Front Panel Jack-retasking
*Supports up to 24-Bit/192 kHz playback
Audio Features
*Audio Shielding
*Premium audio capacitors
*Dedicated audio PCB layers

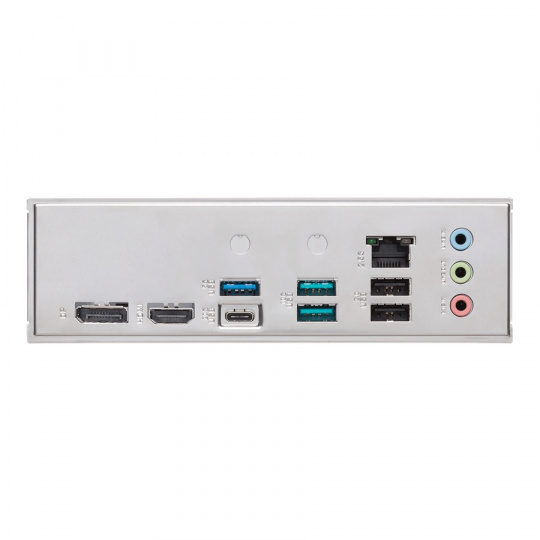

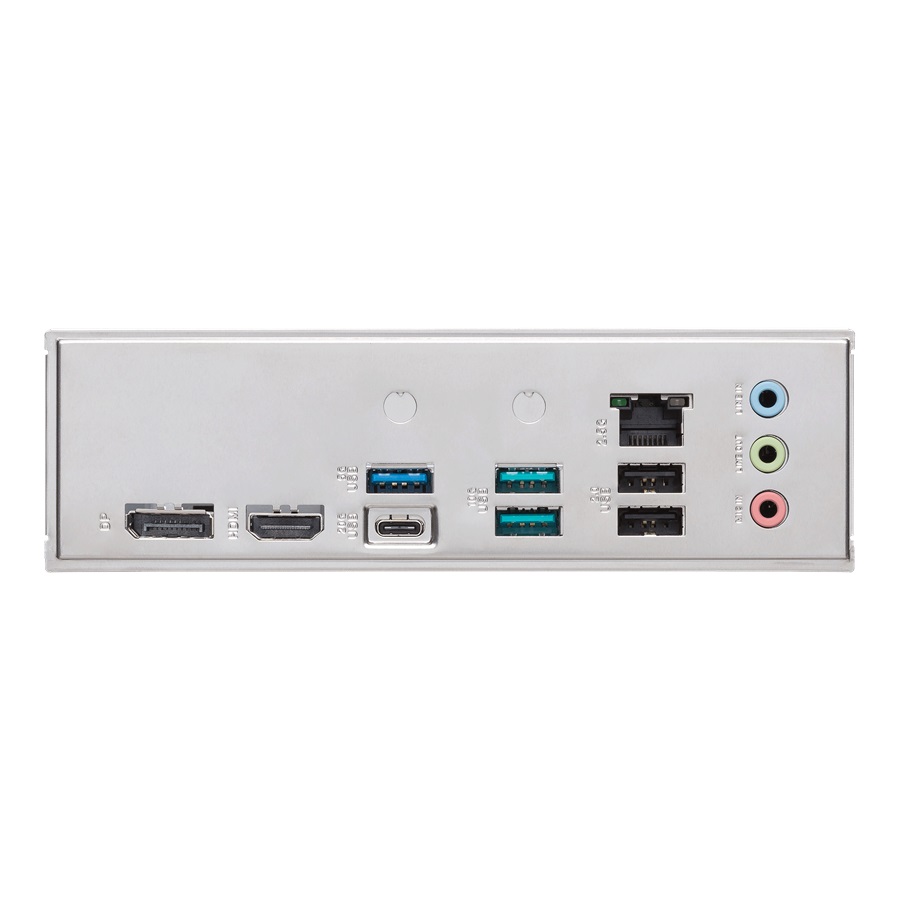

Vstupy/výstupy zadního panelu:
*1 x USB 20Gbps port (1 x USB Type-C®)
*2 x USB 10Gbps ports (2 x Type-A)
*1 x USB 5Gbps port (1 x Type-A)
*2 x USB 2.0 ports (2 x Type-A)
*1 x DisplayPort
*1 x HDMI™ port
*1 x Realtek 2.5Gb Ethernet port
*3 x Audio jacks
Interní vstupy/výstupy:
Ventilátory a chlazení:
*1 x 4-pin CPU Fan header
*1 x 4-pin CPU OPT Fan header
*1 x 4-pin AIO Pump header
*4 x 4-pin Chassis Fan headers
Napájení:
*1 x 24-pin Main Power connector
*1 x 8-pin +12V CPU Power connector
Úložiště:
*3 x M.2 slots (Key M)
*4 x SATA 6Gb/s ports
USB:
*1 x USB 5Gbps connector (supports USB Type-C®)
*1 x USB 5Gbps header supports 2 additional USB 5Gbps ports
*2 x USB 2.0 header support 4 additional USB 2.0 ports
Různé:
*3 x Addressable Gen 2 headers
*1 x Aura RGB header
*1 x Clear CMOS header
*1 x Chassis Intrusion header
*1 x COM Port header
*1 x Front Panel Audio header (F_AUDIO)
*1 x S/PDIF Out header
*1 x SPI TPM header (14-1pin)
*1 x 10-1 pin Front System Panel header
*1 x Thunderbolt™ (USB4®) header

Příslušenství:
Kabely:
*2 x SATA 6Gb/s cables
Různé:
*2 x M.2 rubber packages
*1 x Screw package for M.2 SSD
*1 x Screw package for M.2 Key E
Dokumenty:
*1 x Quick start guide
