Rated power in W 240 W
connections - terminals 1 2 pins
Input connection Hardwire 24 V DC
Output connection Hardwire 24 V DC

colour Metal grey
depth 119 mm
height 129 mm
width 40 mm
mounting position Horizontal
net weight 0.5 kg
mounting mode DIN rail mount

Protect your investment and eliminate data loss with the new 24V DC DIN rail mounted Schneider Electric Industrial UPS, delivering reliable surge protection and battery backup during any power events in an Industrial environment.

Equipped with DC input/output terminals to support PLCs and HMIs while offering extended battery pack support of up to 4 additional batteries for extended runtime during power outages. The Easy UPS Industrial DC DIN Rail power modules come with relay contact terminals that enables remote management of connected equipment as well as monitoring of the UPS.

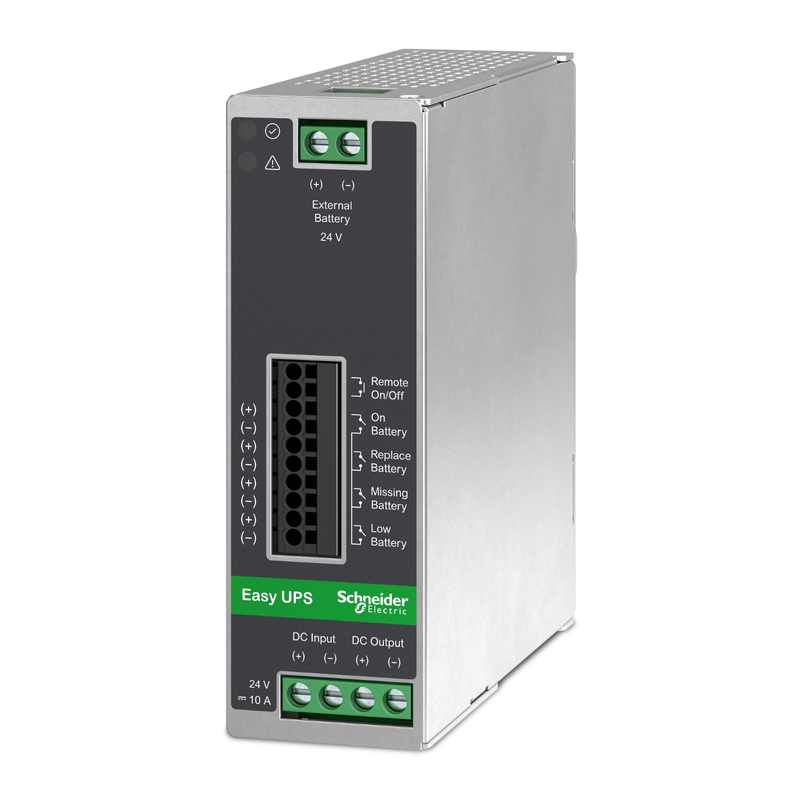

Easy-UPS BVS240XDPDR - 240 Watt (10A) Power Module

Battery SKU
Easy-UPS XB005XPDR - 4.5Ah Battery Module
*Up to 4 battery modules can be connected to each power module

Key Specifications
Hardwire 24V DC Input / Hardwire 24V DC Output
21.6 - 28.6V Input Voltage Range
95% Efficiency
I/O Relay & LED Communication
-15 to +50 Degrees Celsius Operating Temp
DIN Rail Mounting
UL, TUV, CE, UKCA Certification*
2 Year Factory Warranty
