Dell UltraSharp/U4924DW/49"/IPS/5120x1440/60Hz/5ms/Black/3R
Popis a parametry
Ke stažení
Dell UltraSharp/U4924DW/49"/IPS/5120x1440/60Hz/5ms/Black/3R
DELL ULTRASHARP 49 CURVED USB-C HUB MONITOR U4924DW :

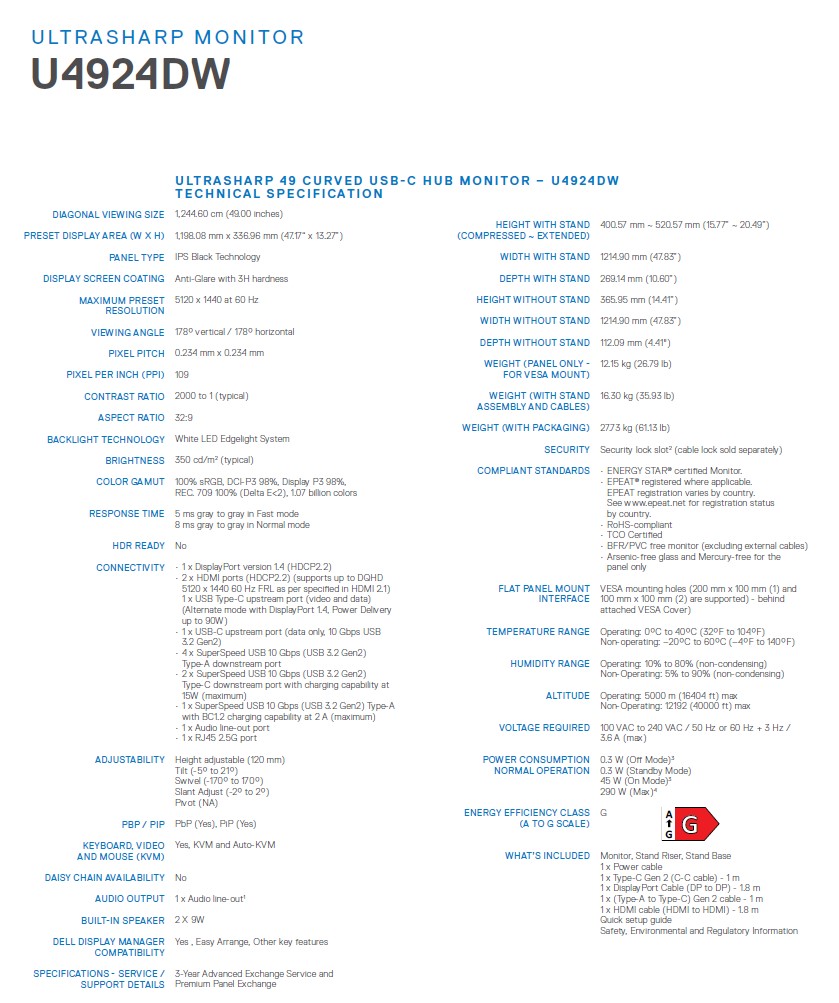

TECHNICAL SPECIFICATION
DIAGONAL VIEWING SIZE: 1,244.60 cm (49.00 inches)
SIZEPRESET DISPLAY AREA (W X H): 1,198.08 mm x 336.96 mm (47.17“ x 13.27”)
PANEL TYPE: IPS Black Technology
DISPLAY SCREEN COATING: Anti-Glare with 3H hardness
MAXIMUM PRESET RESOLUTION: 5120 x 1440 at 60 Hz
VIEWING ANGLE: 178° vertical / 178° horizontal
PIXEL PITCH: 0.234 mm x 0.234 mm
PIXEL PER INCH (PPI): 109
CONTRAST RATIO: 2000 to 1 (typical)
ASPECT RATIO: 32:9
BACKLIGHT TECHNOLOGY: White LED Edgelight System
BRIGHTNESS: 350 cd/m2 (typical)
COLOR GAMUT: 100% sRGB, DCI-P3 98%, Display P3 98%, REC. 709 100% (Delta E<2), 1.07 billion colors
RESPONSE TIME: 5 ms gray to gray in Fast mode, 8 ms gray to gray in Normal mode
HDR READY: No
TCO Certified: Yes
CONNECTIVITY:
• 1 x DisplayPort version 1.4 (HDCP2.2)
• 2 x HDMI ports (HDCP2.2) (supports up to DQHD 5120 x 1440 60 Hz FRL as per specified in HDMI 2.1), 1 x USB Type-C upstream port (video and data) (Alternate mode with DisplayPort 1.4, Power Delivery up to 90W)
• 1 x USB-C upstream port (data only, 10 Gbps USB 3.2 Gen2)
• 4 x SuperSpeed USB 10 Gbps (USB 3.2 Gen2) Type-A downstream port
• 2 x SuperSpeed USB 10 Gbps (USB 3.2 Gen2) Type-C downstream port with charging capability at 15W (maximum)
• 1 x SuperSpeed USB 10 Gbps (USB 3.2 Gen2) Type-A with BC1.2 charging capability at 2 A (maximum)
• 1 x Audio line-out port
• 1 x RJ45 2.5G port

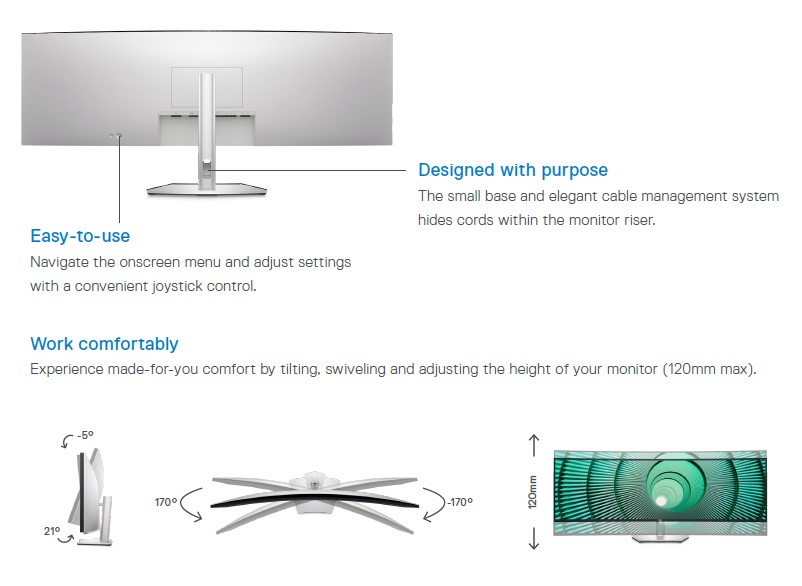

ADJUSTABILITY:
Height adjustable (120 mm)
Tilt (-5° to 21°)
Swivel (-170° to 170°)
Slant Adjust (-2° to 2°)
PBP/PIP: PbP (Yes), PiP (Yes)
KEYBOARD, VIDEO AND MOUSE (KVM): Yes, KVM and Auto-KVM
DAISY CHAIN AVAILABILITY: No
AUDIO OUTPUT: 1 x Audio line-out(1)
BUILT-IN SPEAKER: 2x 9W
DISPLAY MANAGER COMPATIBILITY: Yes , Easy Arrange, Other key features
SPECIFICATIONS - SERVICE / SUPPORT DETAILS: 3-Year Advanced Exchange Service and Premium Panel Exchange
WHAT’S INCLUDED:
Monitor, Stand Riser, Stand Base
1x Power cable
1x Type-C Gen 2 (C-C cable) - 1 m
1x DisplayPort Cable (DP to DP) - 1.8 m
1x (Type-A to Type-C) Gen 2 cable - 1 m
1x HDMI cable (HDMI to HDMI) - 1.8 m
Quick setup guide, Safety, Environmental and Regulatory Information
Stránky výrobce:
https://www.dell.com/en-us/shop/dell-ultrasharp-49-curved-usb-c-hub-monitor-u4924dw/apd/210-bgtz/monitors-monitor-accessories#techspecs_section

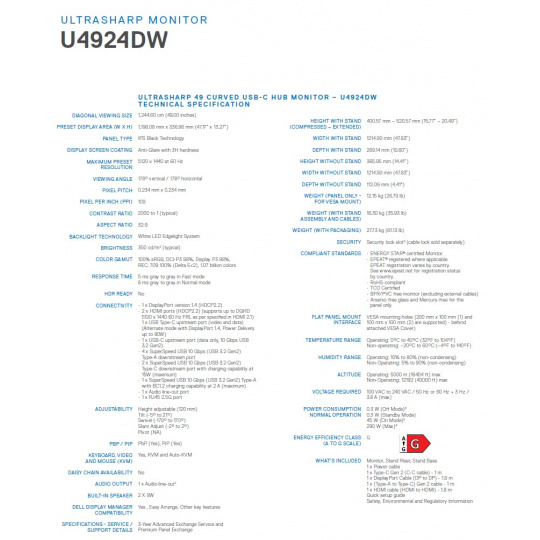

TECHNICAL SPECIFICATION
DIAGONAL VIEWING SIZE: 1,244.60 cm (49.00 inches)
SIZEPRESET DISPLAY AREA (W X H): 1,198.08 mm x 336.96 mm (47.17“ x 13.27”)
PANEL TYPE: IPS Black Technology
DISPLAY SCREEN COATING: Anti-Glare with 3H hardness
MAXIMUM PRESET RESOLUTION: 5120 x 1440 at 60 Hz
VIEWING ANGLE: 178° vertical / 178° horizontal
PIXEL PITCH: 0.234 mm x 0.234 mm
PIXEL PER INCH (PPI): 109
CONTRAST RATIO: 2000 to 1 (typical)
ASPECT RATIO: 32:9
BACKLIGHT TECHNOLOGY: White LED Edgelight System
BRIGHTNESS: 350 cd/m2 (typical)
COLOR GAMUT: 100% sRGB, DCI-P3 98%, Display P3 98%, REC. 709 100% (Delta E<2), 1.07 billion colors
RESPONSE TIME: 5 ms gray to gray in Fast mode, 8 ms gray to gray in Normal mode
HDR READY: No
TCO Certified: Yes
CONNECTIVITY:
• 1 x DisplayPort version 1.4 (HDCP2.2)
• 2 x HDMI ports (HDCP2.2) (supports up to DQHD 5120 x 1440 60 Hz FRL as per specified in HDMI 2.1), 1 x USB Type-C upstream port (video and data) (Alternate mode with DisplayPort 1.4, Power Delivery up to 90W)
• 1 x USB-C upstream port (data only, 10 Gbps USB 3.2 Gen2)
• 4 x SuperSpeed USB 10 Gbps (USB 3.2 Gen2) Type-A downstream port
• 2 x SuperSpeed USB 10 Gbps (USB 3.2 Gen2) Type-C downstream port with charging capability at 15W (maximum)
• 1 x SuperSpeed USB 10 Gbps (USB 3.2 Gen2) Type-A with BC1.2 charging capability at 2 A (maximum)
• 1 x Audio line-out port
• 1 x RJ45 2.5G port

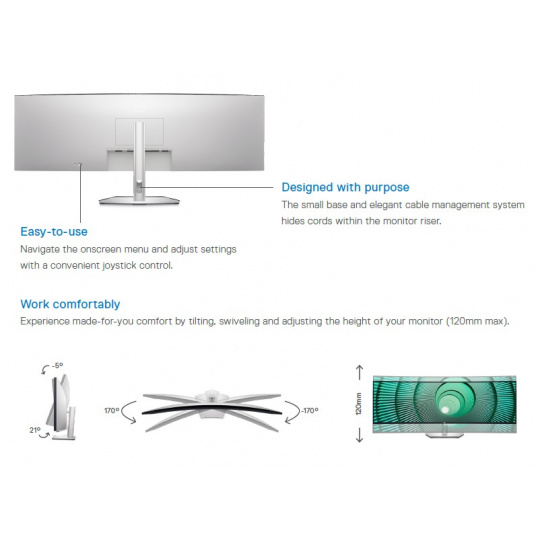

ADJUSTABILITY:
Height adjustable (120 mm)
Tilt (-5° to 21°)
Swivel (-170° to 170°)
Slant Adjust (-2° to 2°)
PBP/PIP: PbP (Yes), PiP (Yes)
KEYBOARD, VIDEO AND MOUSE (KVM): Yes, KVM and Auto-KVM
DAISY CHAIN AVAILABILITY: No
AUDIO OUTPUT: 1 x Audio line-out(1)
BUILT-IN SPEAKER: 2x 9W
DISPLAY MANAGER COMPATIBILITY: Yes , Easy Arrange, Other key features
SPECIFICATIONS - SERVICE / SUPPORT DETAILS: 3-Year Advanced Exchange Service and Premium Panel Exchange
WHAT’S INCLUDED:
Monitor, Stand Riser, Stand Base
1x Power cable
1x Type-C Gen 2 (C-C cable) - 1 m
1x DisplayPort Cable (DP to DP) - 1.8 m
1x (Type-A to Type-C) Gen 2 cable - 1 m
1x HDMI cable (HDMI to HDMI) - 1.8 m
Quick setup guide, Safety, Environmental and Regulatory Information
Stránky výrobce:
https://www.dell.com/en-us/shop/dell-ultrasharp-49-curved-usb-c-hub-monitor-u4924dw/apd/210-bgtz/monitors-monitor-accessories#techspecs_section
ParametryPorovnání
Model
U4924DW
Způsob použití
Domácí/Kancelářské
Úhlopříčka přesná (")
49
Úhlopříčka
47" - 50"
Rozlišení (šxv)
5120x1440
Počet pixelů na šířku
5120
Počet pixelů na výšku
1440
Rozteč bodů (mm)
0,2324
Formát obrazu
Panorama - 32:9
Typ obrazovky
LCD IPS/PLS
LED podsvícení
Ano
Jas (cd/m2) - přesný
350
Kontrast
2000:1
Doba odezvy (ms)
5
Úhel pohledu ver. x hor.
178/178
Repro
ano
Konektor 15 Pin D-Sub
Ne
Konektor DVI
Ne
Konektor DisplayPort
Ano
Konektor HDMI
ano
Konektor USB
ano
Konektor SCART
Ne
Konektor USB-C
Ano
Komponentní video
Ne
Kompozitní video
Ne
Barva
Černá
Výškově nastavitelný stojan
ano
Pivot
Ano
VESA standard
ano
Montáž na stěnu
ano
Třída energetické účinnosti
G
Prohnutý monitor
Ano
Obnovovací frekvence (Hz)
60
DP počet
1
Verze HDMI
Verze 2.1
Dotyková obrazovka
Ne
Jas (cd/m2) - rozsah
251 - 400
Power Delivery
Ano
PIP (Picture in Picture)
Ano
Barevná hloubka
1,07 miliardy
Rozměr VESA uchycení
100 x 100 mm
Spotřeba energie (W)
45
Konektor LAN RJ-45
Ano
Eko produkt podle parametru EU
Ano
Výkon repro (W)
9 W
Záruka
3 Roky
Modelová řada
Dell UltraSharp
Povrch displeje
Matný
Certifikace TCO
Ano
Číslo certifikátu TCO
DE22104062
WWW_PODROBNEJI_SKRIP
TCO logo
Výkon Power Delivery (W)
90 W
Funkce Daisy Chain
Ano
